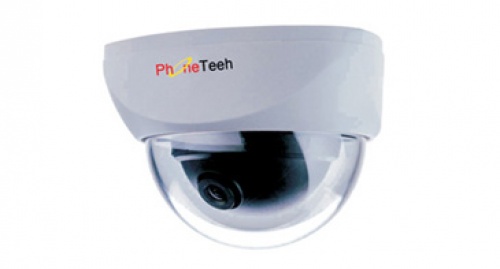

Model |
OS-24C3 IR |
Image Sensor |
1/3" Sony |
Pixels |
PAL: 537(H)×597(V) NTSC: 537(H)×505(V) |
Resolution |
420TVL |
Minimum Illumination |
0 LUX when led on |
S/N Ratio |
>48dB |
Electronic Shutter |
NTSC:1/60-1/100,000 second PAL:1/50-1/100,000 Second |
Lens |
3.7 fixed iris lens ( 2.8 / 4.3 / 6.0 / 8.0 / 12 /16mm for option) |
Video Output |
1.0Vp-p,75Ω,Composite |
AGC |
AUTO |
AWB |
AUTO |
Scanning system |
2:1 Internal |
S/N Ratio |
48dB |
Gamma |
0.45 |
Sync system |
Internal |
Voltage |
12VDC |
Wattage |
1.5W |
Audio Output |
2.0Vp-p RCA |
Working Environment |
Temperature: 10℃ to 50℃ ; Humidity: <90%RH |
Size |
Φ109×70mm |
|
