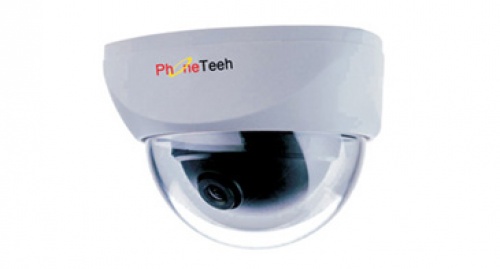

OS-20C3

Image Sensor

1/4" Sharp

Pixels

PAL: 537(H)×597(V)  NTSC: 537(H)×505(V)

Resolution

420TVL

Minimum Illumination

1.0LUX

S/N Ratio

>48dB

Electronic Shutter

NTSC:1/60-1/100,000 second PAL:1/50-1/100,000 Second

Gamma

0.45/1(Set To 0.45 Before shipment)

Lens

3.7 fixed iris lens ( 2.8 / 4.3 / 6.0 / 8.0 / 12 /16mm for option)

Video Output

1.0Vp-p,75Ω,Composite

AGC

AUTO

AWB

AUTO

Scanning system

2:1 Internal

S/N Ratio

＞48dB

Gamma

0.45

Sync system

Internal

Voltage

12VDC

Wattage

1.5W

Audio Output

2.0Vp-p RCA

Working Environment

Temperature: 10℃ to 50℃ ; Humidity: <90%RH

Size

Φ109×70mm
