Model

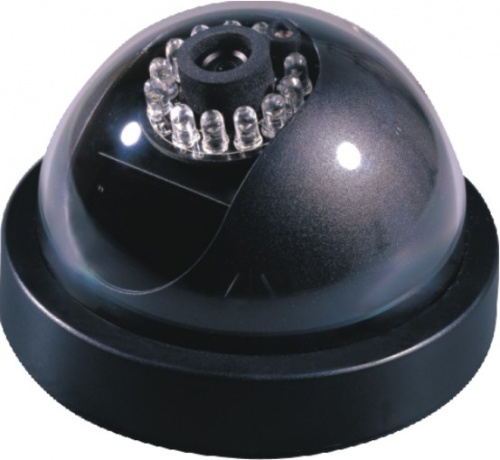

FD-804AS

Image sensor

1/3"sony Color CCD

Effective Pixels

PAL: 500(H)*582(V)
NTSC: 510(H)*492(V)

H.Resolution

420 TV Lines

Synchronizing system

Internal

Scanning system

NTSC 525 Lines    PAL 625 Lines    2:1 Interlaced

Video output

1.0Vp-p Composite. 75 Ohms

S/N ratio

More than 46 dB (AGC Off)

Min. Illumination

0.5 Lux at F2.0,0Lux/ when LED on

BLC

Automatic

Gamma correction

r=0.45

White balance

Automatic

Shutter Speed

NTSC : 1/60…1/100,000 sec

PAL : 1/50…1/100,000 sec

Lens

Standard

3.6mm

Option

3.6mm, 6mm, 8mm, 12mm, 16mm

LED

12PCS

Power source

DC12V

Operating Temperature

-10oC ~+50oC RH95% Max
