| Models |

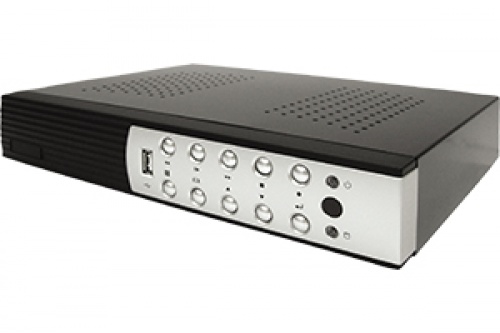

DVR408 |
| Video Format |
NTSC/PAL |
| Video Compression |
MJPEG |
| Internet Transmitting / Compression |
MPEG4 |
| Display Frame Rate |
240/200fps |
| Recording Frame Rate (Auto balance) |
60/50fps |
| Display Resolution |
640x448 / 640x544 |
| Recording Resolution |
640x224/640x272 |
| Display Division |
Single / Sequence / Split (1/4/8) |
| Video Input |
BNCx8 |
| Video Output |
Video outx2, S-Videox1, VGAx1 |
| Audio In/Out |
1/1 |
| Alarm In/Out |
8/1 |
| Recording Mode |
Continuous / Schedule / Motion Detection / Sensor |
| Recording Quality |
High/Normal/Low |
| Search Mode |
Time/Event |
| Storage Support |
Slim model: SATA HDD x 1, |
| Backup Device |
USB stick |
| Serial Connectors |
USB 2.0x1, Mouse (Combo USB & PS/2 protocol) x 1,
RS485 x 1 |
| Network Connection |
10/100 Ethernet(RJ-45) |
| Network Protocol |
TCP/IP, Static IP, DHCP, PPPOE , DDNS
(through Router) |
| Network Remote |
Remote monitoring, recording, playback
and PTZ by Client Program and IE browser. |
| Power Supply |
Input:AC100~240V, 50/60Hz
Output:DC12V/4A |
| Dimension(WxHxD) |
290X52X220mm |
| Weight |
1.8kg (W/O HDD) |
