| Model |

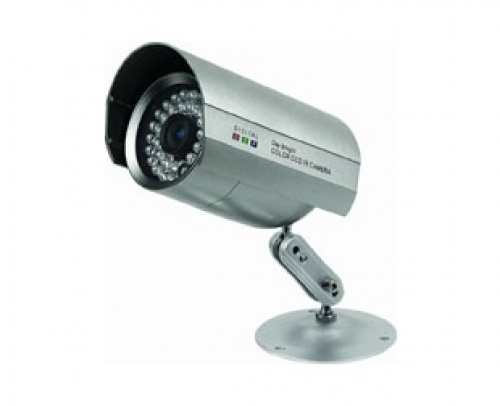

LICS23SHQ |
| Image Sensor |
1/3"SONY color CCD |
| Horizontal Resolution |
540 TV Line |
| Pixels |
PAL:795 (H)× 596(V) NTSC :811 (H)×508 (V) |
| TV System |
PAL/NTSC |
| IR LED |
24 PCS |
| IR Series Distance |
20 M |
| Lens |
Board Lens 3.6mm/F2.0 |
| Sync System |
Internal |
| IR Status |
Under 10 Lux By CDS |
| Usable Illumination |
0 Lux with IR ON |
| IR Power On |
CDS Auto Control |
| S/N Ratio |
≥48dB (AGC OFF) |
| Gamma Correction |
0.45 |
| Video Out |
Composite Signal (1.0Vp-p, 75Ω) |
| Scanning System |
PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec |
| Electronic Shutter Time |
Auto:PAL 1/50-1/100,000Sec;NTSC 1/60-1/100,000Sec |
| Operation Temperature |
-20℃ ~ +50℃ RH95% Max |
| White Balance |
Auto |
| Power Source |
DC12V 250mA |
| Dimension |
56x62x108 mm |
| Weight |
650g |
|
